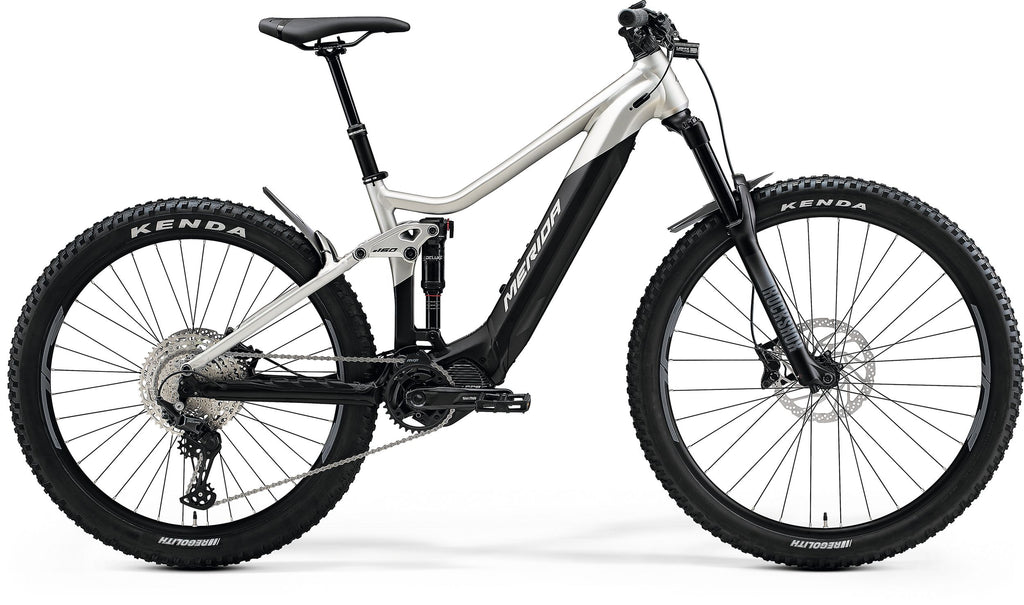

MERIDA EONE SIXTY 500 E BIKE
Our price – $6,999.00 (RRP $8199.00)
Currently in store in sizes Small and Medium in Titanium Black. Other colours and sizes available to order.
OVERVIEW
The new eOne Sixty 500 once again takes podium spot against competing e-enduro bikes. Agile and playful on the downhills due to its perfectly tuned MTB geometry. Then, when it’s time to head back up the brand-new Shimano EP8 motor offers a whopping 85Nm of torque, capable of climbing the steepest, roughest trails with ease. The durable yet lightweight Alloy frame seamlessly integrates the long-range, fast-charging Shimano E8036 630Wh battery (XS:E8035/504Wh) into the lower downtube, then ‘thermo gate’ ventilation ports work to dissipate warm air. A RockShox 35 Gold RL fork offers 160mm of supple, responsive front suspension, paired with an adjustable Rock Shox Deluxe Select+ shock. The ebike specific Shimano Deore 11 speed drivetrain with matching 4 piston hydraulic disc brakes provide high-performance durability, while a 29er front and a 27.5” rear wheel offer up precise steering with maximum traction.
SPECIFICATIONS
Axles: | MERIDA EXPERT TR including removeable lever, 6/4mm allen key |
---|---|
Battery: | Shimano E8036 630Wh (E8035 504Wh XS) / CHARGER: Shimano EC-E6002 2A charging current |
Bottom bracket: | included |
Brakes: | Shimano M4100 4 piston |
Chain: | HG601-11 |
Chainwheel: | Shimano CRE70B 34 teeth Shimano FCEM600 |
Colour (text): | SILK GREEN/ANTHRACITE |
Derailleur rear: | Shimano Deore RDM5100 11 |
Display: | Shimano SC-E5003 |
Fender: | C093-02F + C093-02R |
Fork: | Rock Shox 35 Gold RL Air 160mm suspension travel Tapered 51mm fork offset 29x2.8" max wheelsize |
Frame: | eONE-SIXTY LITE III material: aluminium 150mm suspension travel 27.5x2.8" max. wheelsize 148x12mm axle standard intube max. 630 Wh |
Freewheel: | Shimano M5100 11-51 teeth 11 speed |
Grip: | MERIDA EXPERT EC |
Handlebar: | MERIDA EXPERT eTR 780mm width 20mm rise |
Handlebar stem: | MERIDA EXPERT eTRII material: aluminium 35mm diameter 0° stem angle GoPro & Supernova mount 40 mm all sizes |
Headset: | MERIDA-8152 |
Hubs: | Shimano MT400-B 110x15mm width front hub 32 spoke holes Centerlock 148x12mm width rear hub 36 spoke holes Centerlock |
Light(s): | FRONT: LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount / REAR: USB REAR Light CG-214RG |
Motor/drive unit: | Shimano EP8 85Nm |
Pedals: | VP VPE-537 |
Rim: | MERIDA COMP TR 29mm inner width material: aluminium Tubeless ready (tubeless tape and valves not included) |
Rotor front: | Shimano RT30 203 mm |
Rotor rear: | Shimano RTEM300 203 mm |
Saddle: | MERIDA COMP CC V-mount |
Seat clamp: | MERIDA EXPERT clamp |
Seat post: | MERIDA COMP TR 30.9mm diameter 0mm setback XS 100mm travel seatpost - S/M 125mm travel seatpost - L/XL 150mm travel seatpost |
Shock: | Rock Shox Deluxe Select+ |
Spokes: | Black stainless |
Tyre front: | Kenda Regolith 29x2.4" wire |
Tyre rear: | Kenda Regolith 27.5x2.6" wire |
Weight: | 23.84 kg weighed with 29" wheels and at frame size M, without pedals, incl. lights |
Wheel size: | 29" / 27.5" |
For further details please see https://www.merida-bikes.com/en/bike/2191/eone-sixty-500
