Our Price – from $3,795.00


Please enquire for availability of specific sizes / configurations.

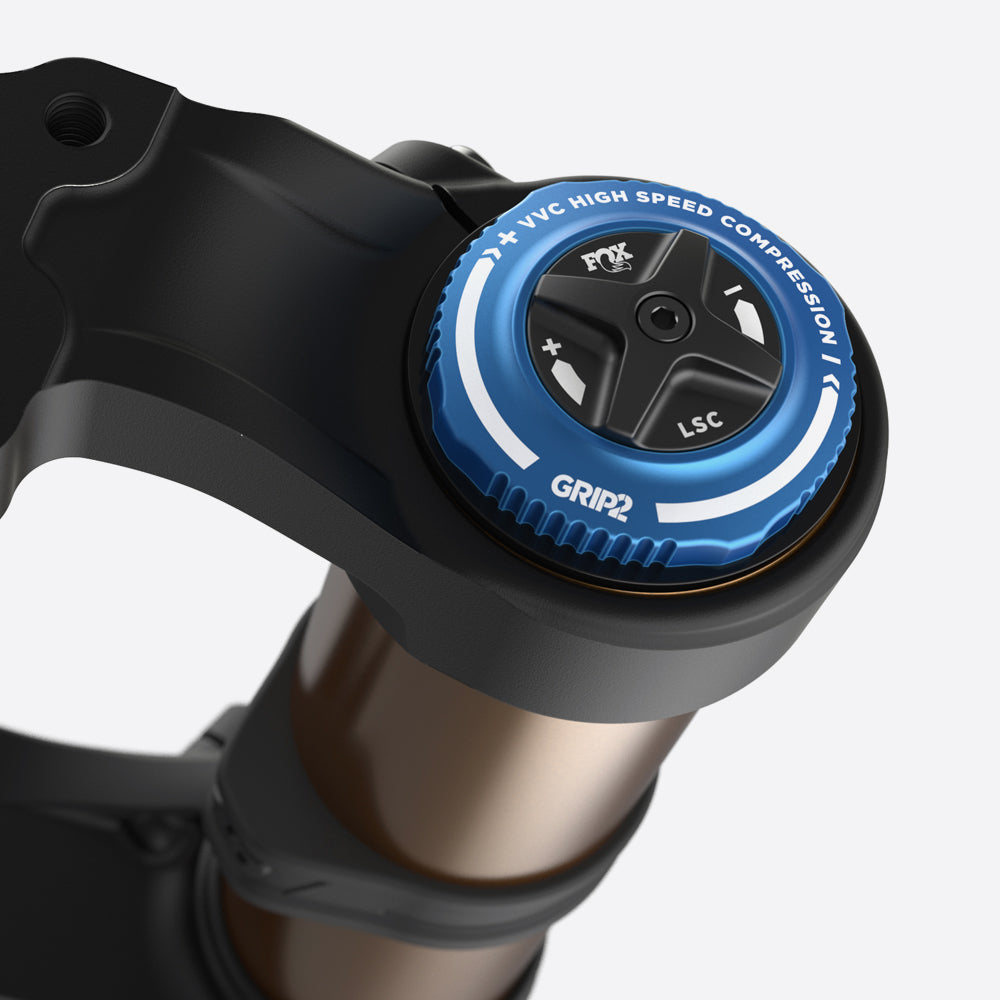

Target locked on the top step of the podium, developed in the crucible of World Cup competition, the 40 is the definitive DH race fork. A Grip2 damper with VVC, and an updated EVOL air spring, along with a host of other radical performance driven features, ensure that the 40 stays in the hot seat.

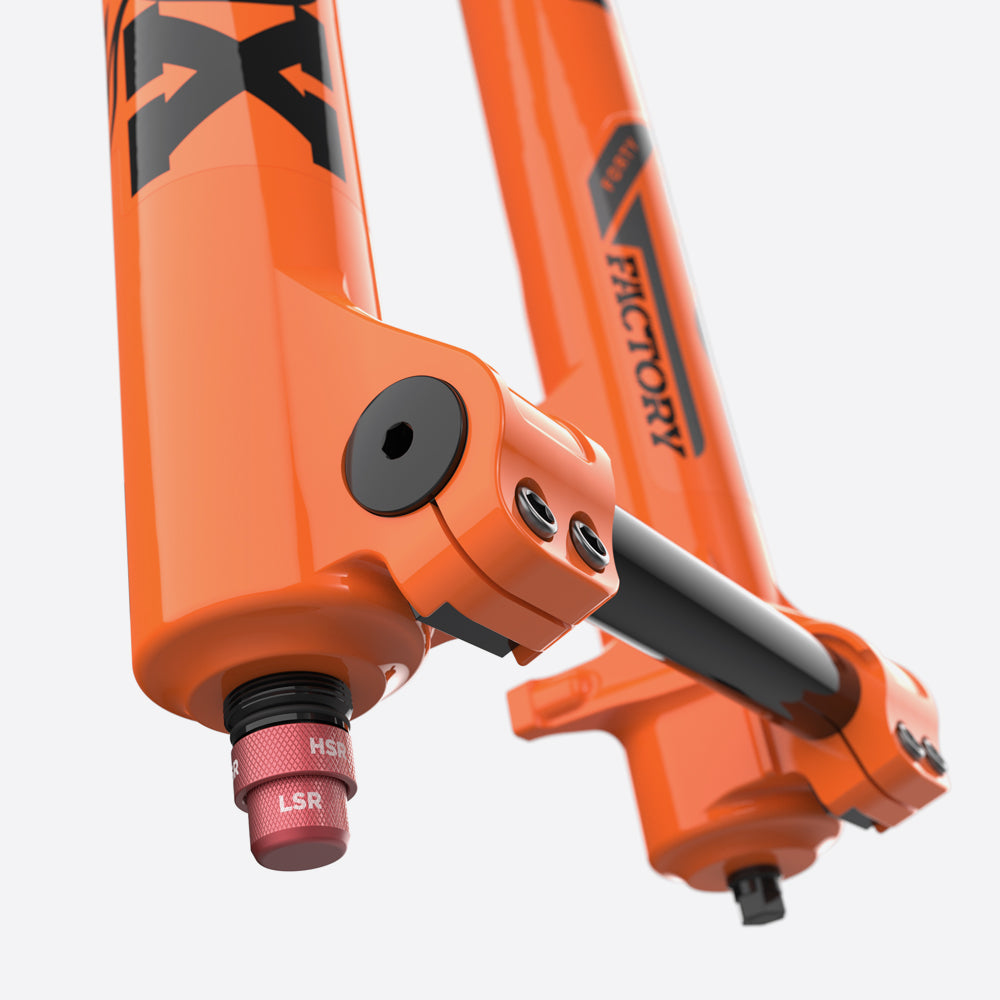

Floating axles might look similar to other axles, but in fact they offer a distinct performance advantage due to their unique ability to match the exact width of the fork’s wheel mounting surface precisely to the front hub flange spacing, thus creating perfect chassis alignment and eliminating unwanted friction between the upper and lower fork legs. Floating axles provide much smoother suspension movement throughout the entire range of the fork’s travel, notably improving sensitivity and overall ride quality.


As a fork compresses, the air volume within the lower legs decreases, increasing air pressure. The more the fork compresses, the more pressure increases. This effect can have the unintended consequence of preventing full travel from being achieved. Our lower leg channels help alleviate this issue by dramatically increasing air volume within the lower legs and thereby reducing the amount of additional unintended pressure ramping.

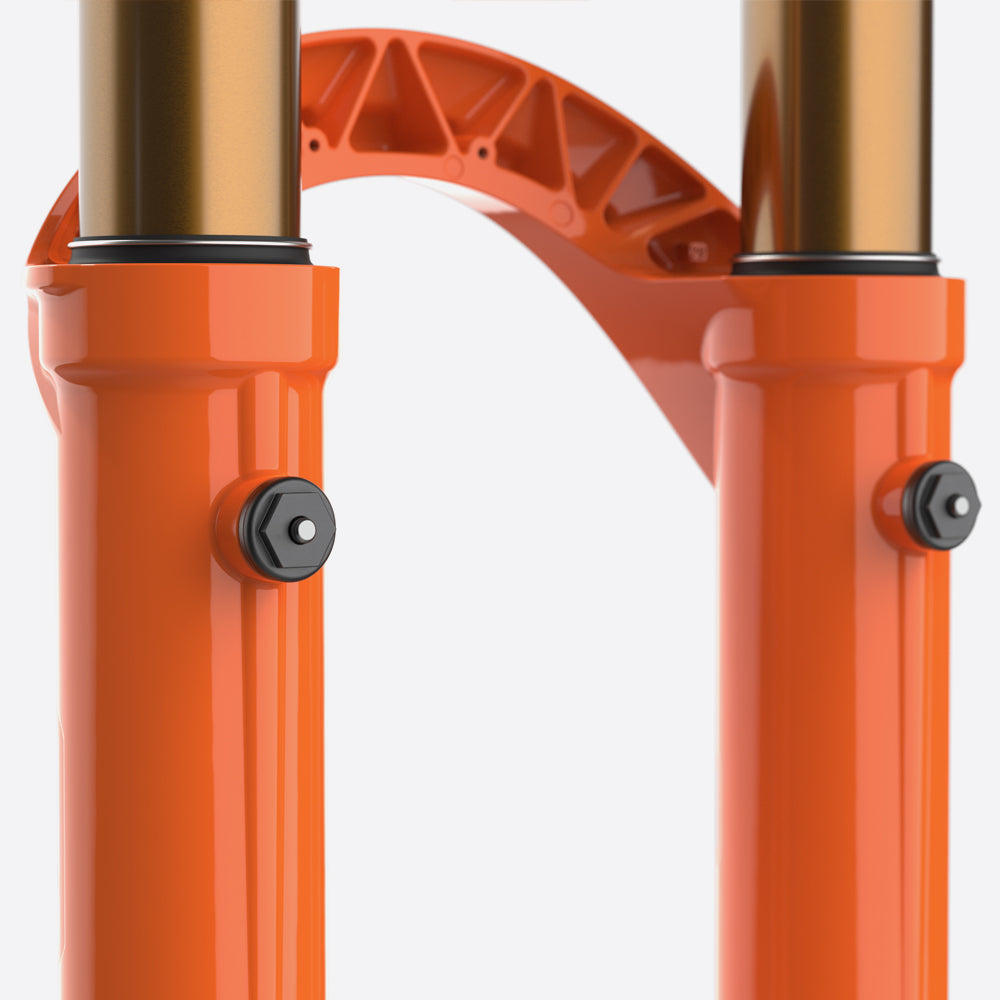

Our lower leg bleeders allow for atmospheric pressure equalization at the simple press of a button. Pressure build-up in the lower legs dramatically decreases fork performance, preventing full travel from being achieved, and diminishing small bump sensitivity and responsiveness.


Stiffness-to-weight is the ultimate metric for bicycle design. Engineers invest countless hours poring over every ounce of material in an effort to optimize this critical ratio. Our all-new lower leg design pulls out all the stops, shaving every possible gram while making sure not to compromise stiffness or strength requirements of modern enduro and gravity style riding.


Wheel Size: 27.5 / 29
Coating Lowers: Shiny Black or Shiny Orange
Travel: 203
Rake: 48 (27.5) / 52 (29)
Axle: 20 Thru-Axle x 110 Boost

40 Factory Series FIT GRIP2
